Sony 7.2 Channel 360 Spatial Sound Mapping 8K AV Receiver - STRAN1000

$1,199.99 CAD

Availability
Call for availability

Literature

Featuring 360 Spatial Sound Mapping technology, the AN1000 gives you an immersive surround experience that is enabled by multiple phantom speakers.1 With D.C.A.C. IX Auto Calibration, it’s always optimized for the best sound setting for your room, resulting in a breathtaking cinematic sound experience at home. And thanks to DTS:X and Dolby Atmos support, the AN1000 delivers mighty, cinematic surround, right alongside stunning high-resolution music, streaming and smart integration.



360 Spatial Sound that adapts to your environment

D.C.A.C. IX ingeniously measures the height and position of each speaker with a calibration microphone.

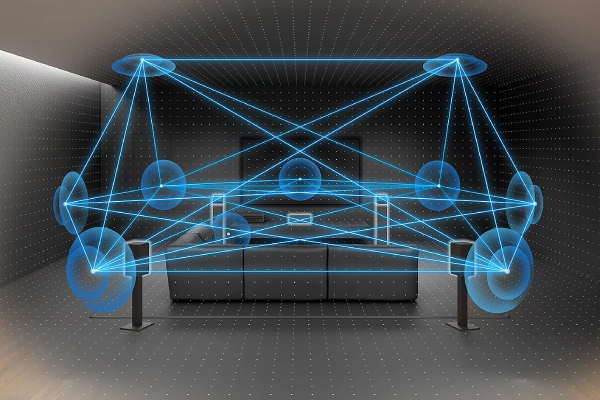

The AN1000 features 360 Spatial Sound Mapping technology to draw you into your entertainment like never before. Based on the positional information measured by D.C.A.C. IX, and multiple phantom speakers1 are generated all around you, for an entirely new sound sensation, so you can experience all the drama of Dolby Atmos® and DTS:X® alongside every breath, step and word like you’re right inside the film.




High-quality visuals

See vivid scenes full of real-life colour and depth. All of the original picture quality is preserved when played through the AN1000, so you’ll be completely immersed in movies. Gaming is also much more thrilling and realistic, with support for the latest formats, such as Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) in HDMI 2.1.



High quality sound

Enjoy music the way the artists truly intended with High-Resolution Audio for crystal-clear precision. Or discover a new way of listening with

360 Reality Audio5 for a truly immersive live concert or studio session experience. With the AN1000, your music comes to life like never before. It also supports DSD (Direct Stream Digital) native playback, with no conversion involved so DSD content can be fully enjoyed without losing any of the original quality.



Best with Sony TVs

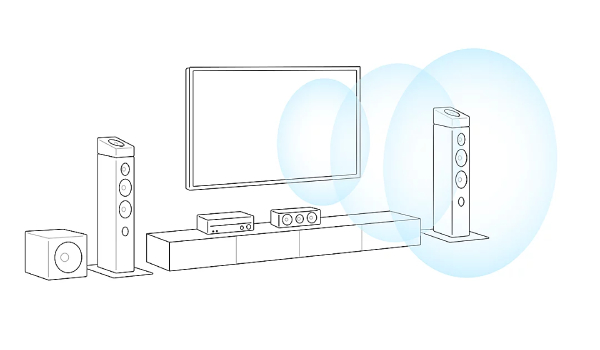

When connected to a BRAVIA TV with Acoustic Centre Sync3 4, both the audio system and the TV become the centre speaker in your home cinema system. With Acoustic Centre Sync, you’ll hear dialogue from the screen. Action and sound are precisely aligned so your viewing becomes much more immersive



MORE FEATURES



Surround technologies

High Quality Visuals

High Quality Sound



Best with Sony TVs

Optional Speakers

Designed for any TV



Easy access to music

Voice Assistant(works with)

Interface



Sustainability




HIGHLIGHTS

360 Spatial Sound Mapping technology creates multiple phantom speakers from the real speakers with Dolby Atmos® and DTS:X.

The supplied calibration microphone and latest-generation D.C.A.C. IX auto calibration allows the AN1000 to measure 3D position of the speakers.

All of the original picture quality is preserved when played through the AN1000.

Immerse yourself in supreme music quality with support of 360 Reality Audio and High-Resolution Audio.

When connected to a BRAVIA TV with Acoustic Centre Sync, both the audio system and the TV become the centre speaker in your home cinema system.

Compatible with Sony’s wireless subwoofer and rear speakers.


Size & Weight
Weight (kg)9.4 kg
Dimensions (Wx Hx D mm)430 x 156 x 331 mm
Dimensions (Wx Hx D inches)17 x 6.25 x 13.13
Weight (pound)20 lb ,12 oz
General Features
Auto StandbyYes
GUI (Graphical User Interface)Yes
Power Requirement 120V 60Hz
Power consumption240W
Amplifier
Number of Amp. Channels7ch
Number of Decodable channels7.1ch
Power Output120W + 120W (6 ohms ,1Khz , THD 0.9%)
Speaker Impedence6-16ohms
SUMMARY

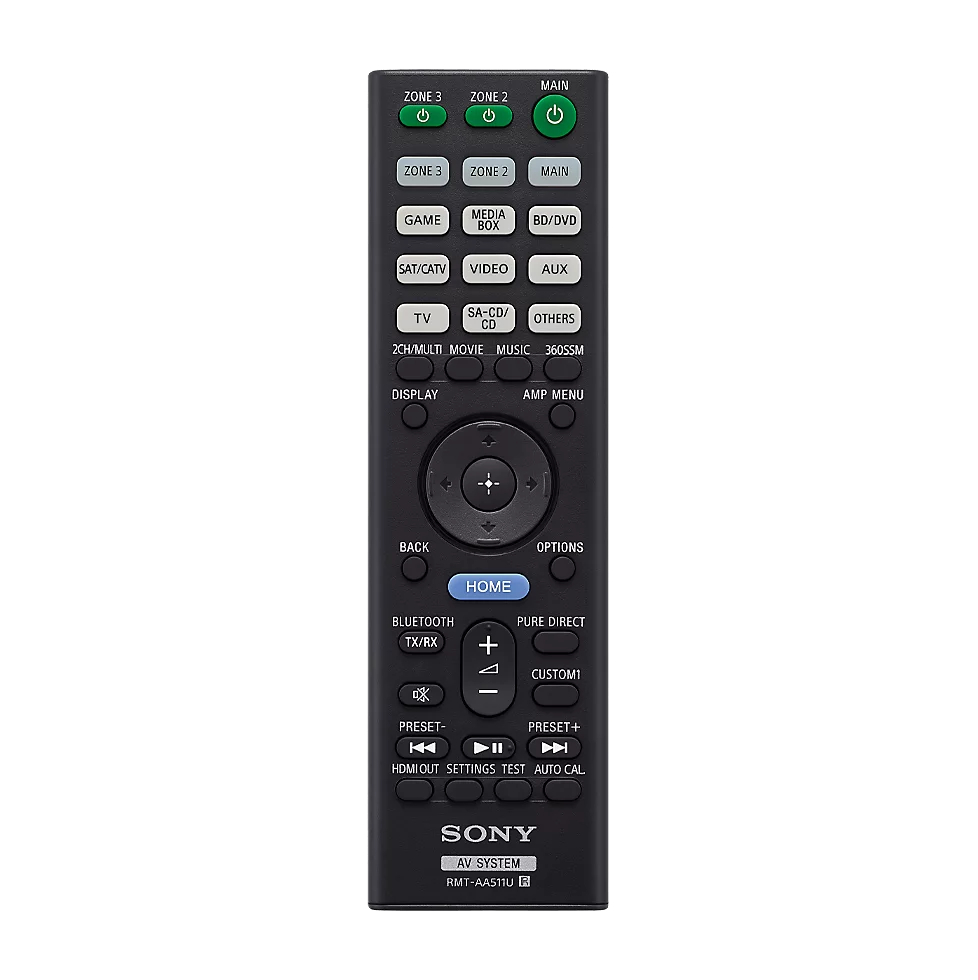

What's in the box Calibration microphone(Stereo) , Calibration mic stand , FM wire antenna , Remote control ,R03 (size AAA) batteries
Audio Features
Sound Field 2ch Stereo, Direct, Auto Format Decoding, Multi Stereo, Auto Format Decoding for Movie, Dolby Mode, DTS:X Mode, Audio Enhancer, Headphone(2ch)
Sound Enhancement technologies Acoustic Centre Sync, DSEE Ultimate, DSD Native Playback, Pure Direct, In-Ceiling Speaker Mode, Centre Speaker Lift Up
Virtual Surround Technology360 Spatial Sound Mapping, Phantom Surround Back, Speaker Relocation
360 Reality AudioYes
High Resolution AudioYes
High Resolution Audio WirelessYes
Decoding Format for HDMIDSD, LPCM, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS: X, DTS HD MA / DTS HD HR, DTS
Hi-Res FormatDSDIFF (DSD): Up to 11.2 MHz, DSF: Up to 11.2 MHz, WAV (LPCM), AIFF (LPCM), FLAC, ALAC
Calibration FeaturesD.C.A.C. IX, Automatic Phase Matching
VIDEO FEATURES
4K 120 supportYes (GAME, MEDIA BOX)
8K 60 SupportYes (GAME, MEDIA BOX)
HDMI® Pass ThroughYes (HDR10, Hybrid Log Gamma, Dolby Vision)
Video Up ScalerYes (up to 4K/8K)
A/V SYNCYes (Variable)
Audio Return ChannelYes (eARC/ARC)
BRAVIA® SYNC™ (CEC Control)Yes
HDMI Pass throughYes
Features Specified in HDMIVRR , ALLM
IMAX EnhancedYes
Features for PlayStation®5
AUTO HDR TONE MAPPING COMPATIBLE (PASS-THROUGH)Yes
AUTO GENRE PICTURE MODE COMPATIBLE (PASS-THROUGH)Yes
Tuner Features
FM/AMYes/No
Preset Channel(FM/AM)TTL30 (30/0)
Custom Install and Control Features
Zone2 Audio HDMI(Fixed)
Zone2 VideoHDMI
Zone3 AudioSpeaker (variable)/ Line (variable,Fixed)
IR Repeat (IN/OUT)Yes(1/1)
12V TriggerNo

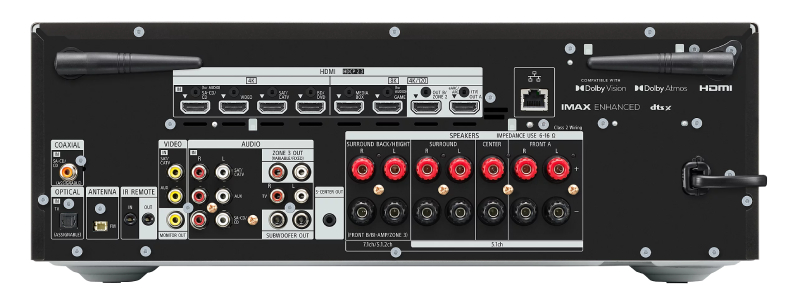

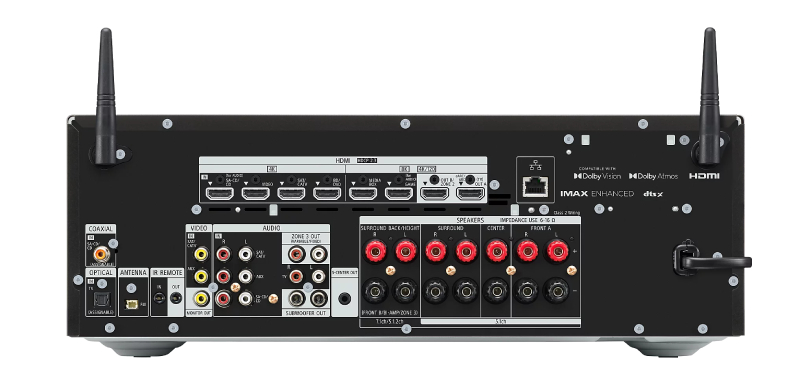

Interface
Audio InputOpt: 1, Coax: 1, Analogue Audio In: 4
Audio OutputHeadphone Out, Pre Out (Subwoofer): 2, S-Centre out for Acoustic Centre Sync
Speaker Output TerminalsFront A, Centre, Surround, Surround Back / Height (Front B / Bi-AMP / Zone 3)
Video InputHDMI: 6, Composite: 2
Network Features
Spotify ConnectYes
Airplay2Yes
Chromecast built-inYes
Voice ControlYes(Works with Google home)
Works with SonosYes
Roon TestedYes
DLNADMP , DMR
Interface
Video OutputHDMI: 2, Composite Monitor Out: 1
HDMI™ HDCP version HDCP2.3
Other Input/OutputWireless speakers option, Bluetooth Receiver, Bluetooth Transmitter, Wi-Fi, Ethernet Port: 1, USB: 1
