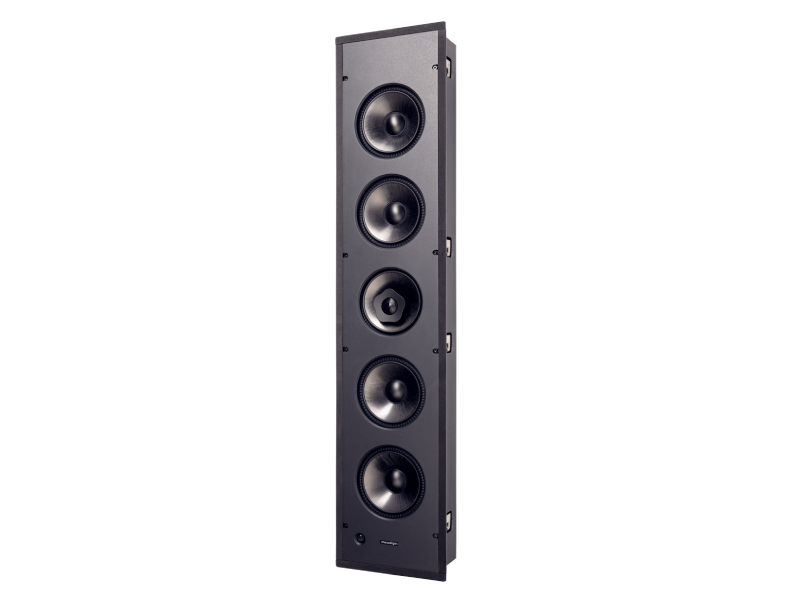

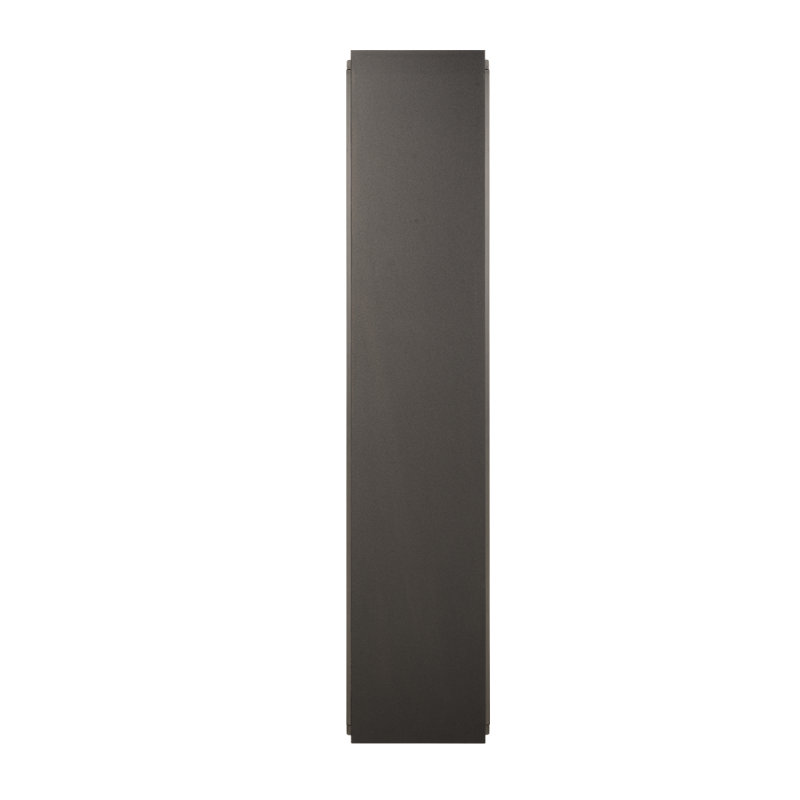

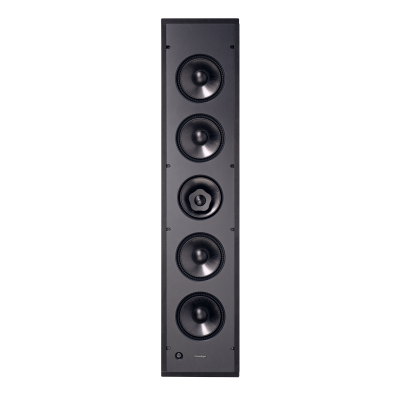

Paradigm CI PRO Series In-Wall LCR Speaker with Shallow Enclosure - CI Pro P5 LCR v2



Availability
Call for availability

Literature

The Custom Installer's Smarter Choice.The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality.

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn't just sound good "on paper" but truly sounds incredible in the real world.



CARBON-X™ Cones

Paradigm's exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.



Advanced Shock-Mount™ System

(baffle/basket isolation) Like the CI Elite Series, we've added the same great Advanced Shock-Mount™ System to mechanically decouple the basket from the chassis. This significantly reduces performance-robbing vibrations and resonances between the acoustic platform and the rest of the speaker. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.



Patented Active Ridge Technology (ART™) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. US patents: D654,479S and 8,340,340B2.



Reduced Edge Diffraction (RED™) Technology

significantly reduces the adverse effects of diffraction while improving frequency response.



Advanced Features for a Solid and Secure Installation

FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.



Integrated Acoustic Back-box Enclosure safeguards internal parts from debris while preventing added sound 'spillage' to adjacent rooms. It also ensures consistent and reliable performance from application to application. (CI Elite LCR models only)



Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)



Pocketed screw holes help to hold the drill steady, making installation a snap.



Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.



Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

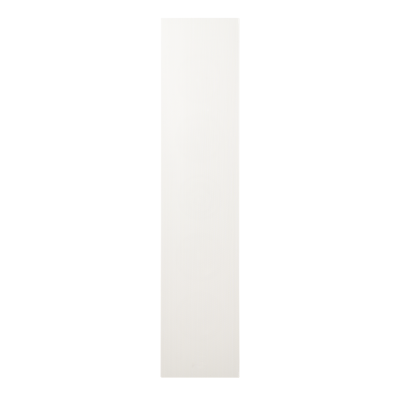

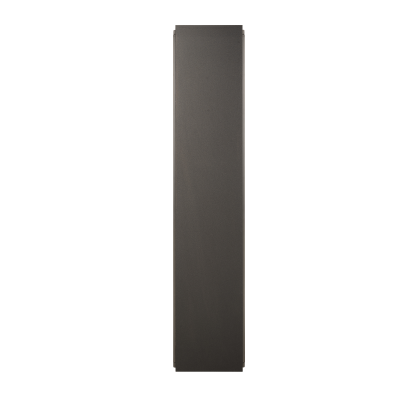

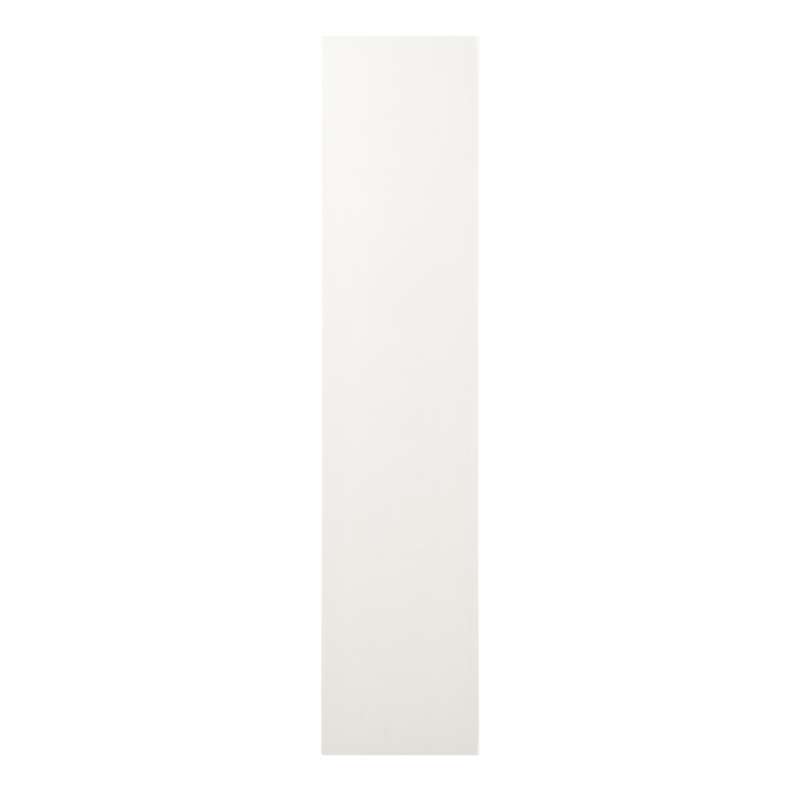

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.



Magnetically attached grilles: neodymium magnets hold grilles firmly in place.


Specifications

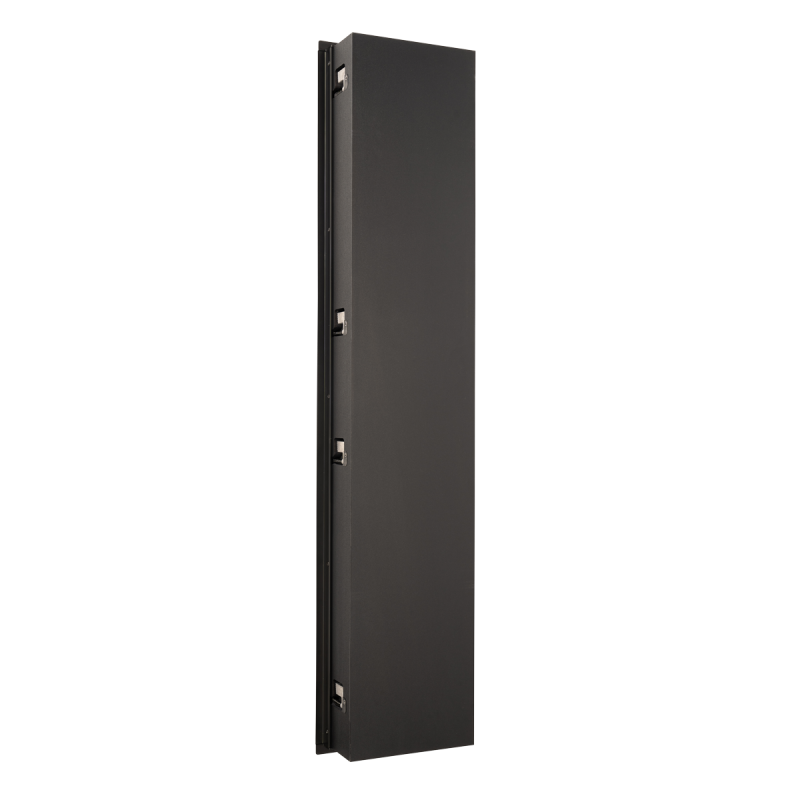

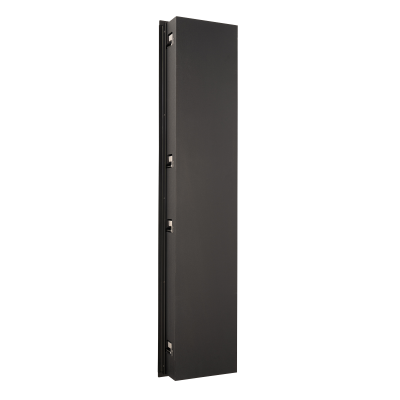

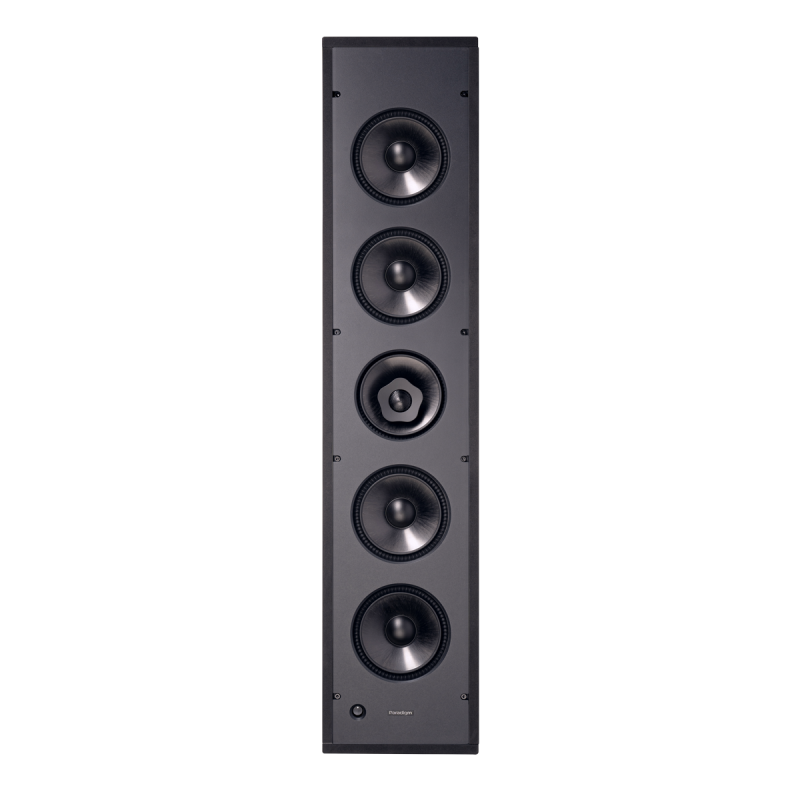

DESIGN4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System
CROSSOVER3rd-order electro-acoustic at 2.8 kHz, 2nd-order electro-acoustic @ 500 Hz
FREQUENCY RESPONSE ON-AXIS±3 dB from 84 Hz - 22 kHz
HIGH FREQUENCY DRIVER1" (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
BASS FREQUENCY DRIVERTwo 6.5" (16.5cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
MIDRANGE FREQUENCY DRIVER6.5" (16.5cm) Coaxial AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 1" high-temp multi-layered voice coil with Apical™ former
LOW FREQUENCY EXTENSION65 Hz
SENSITIVITY ROOM / ANECHOIC94 dB / 91 dB
FREQUENCY RESPONSE 30° OFF-AXIS±3 dB from 84 Hz - 19 kHz
SUITABLE AMPLIFIER POWER RANGE15- 200 W
MAXIMUM INPUT POWER130 W
IMPEDANCECompatible with 8 ohms
WEIGHT29.0 lbs (13.2 kg)

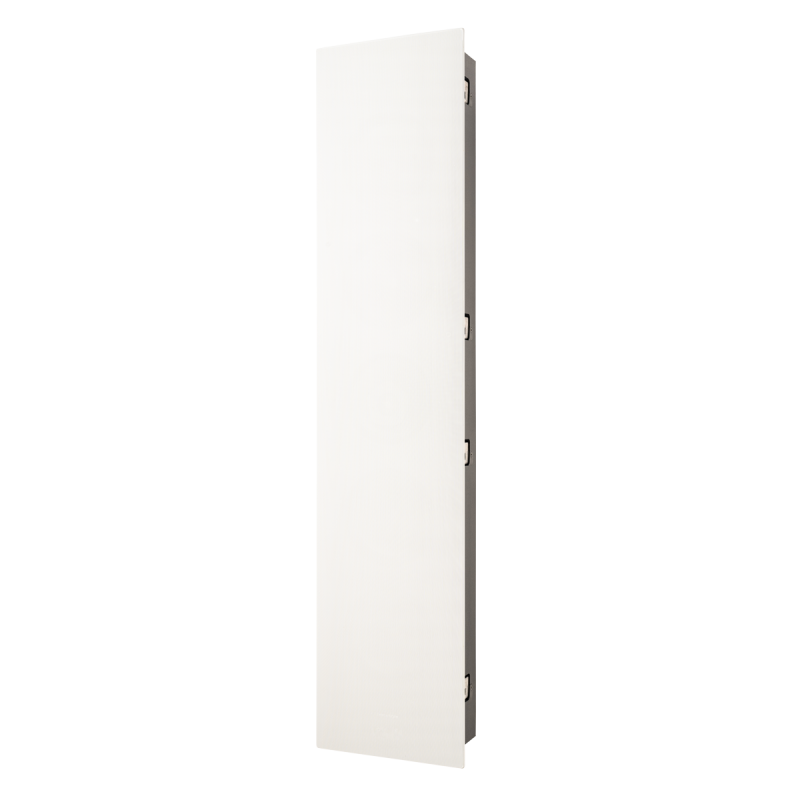

FINISHESWhite, paintable grille, black speaker
PASSIVE RADIATORSTwo 6.5" (16.5cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
CUT-OUT DIMENSIONS42" x 8-1/2" (106.6cm x 21.6cm)
MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)3-7/8" (9.8cm)
