Paradigm CI Home Series LCR In-Wall Speaker - CI Home H55-LCR v2
$399.99 CAD / Each |
Paradigm CI Home Series LCR In-Wall Speaker - CI Home H55-LCR v2
CI Home H55-LCR v2
The Affordable Audiophile Collection. Your "Go-To" Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, trickle-down technologies, easy installation, and a bezel-free micro-perf grille with an incredibly discreet aesthetic.

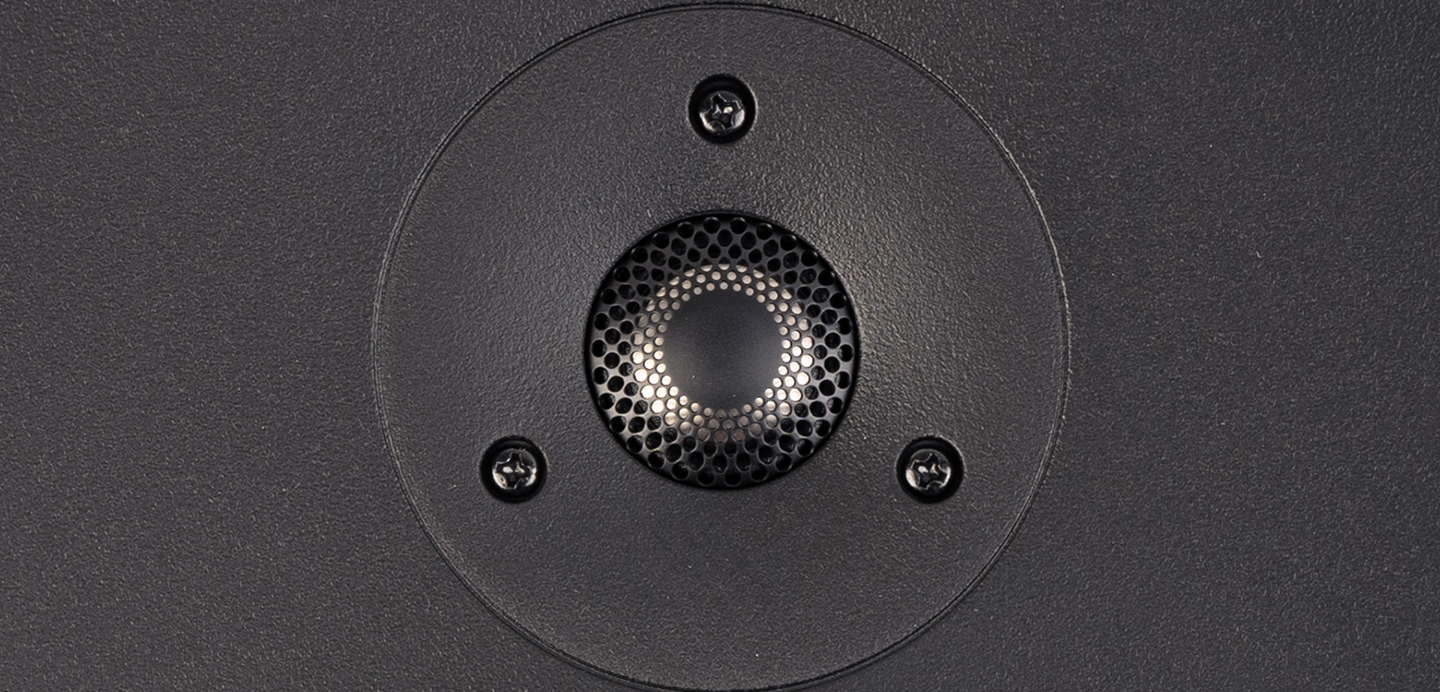

Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.
Dual Directional Soundfield™
30°-Angled Guided Soundfield™
Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models
Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.

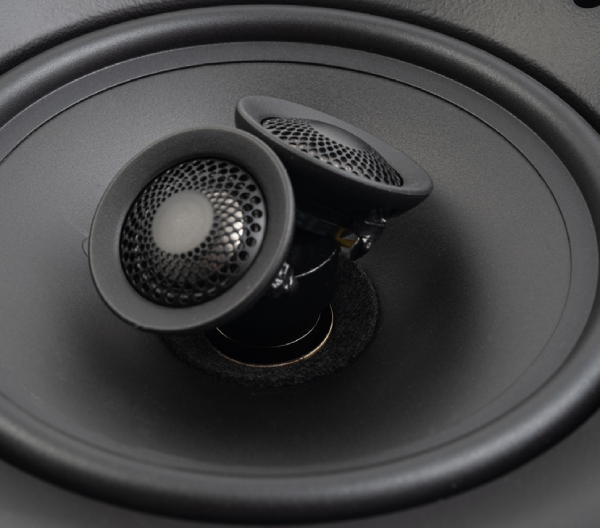

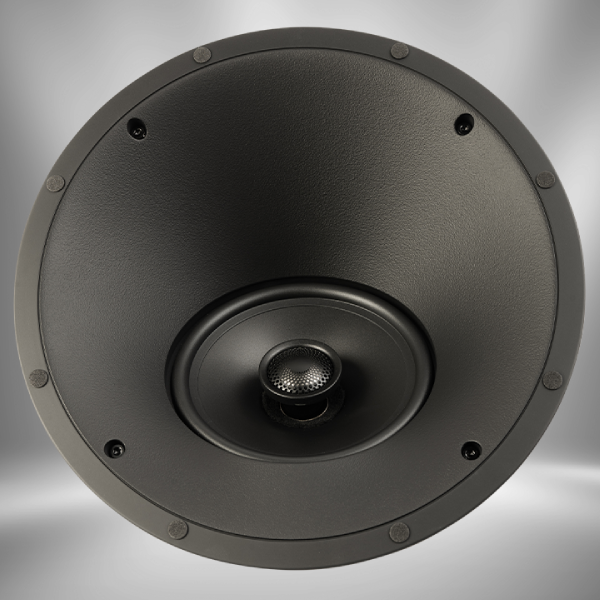

Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.

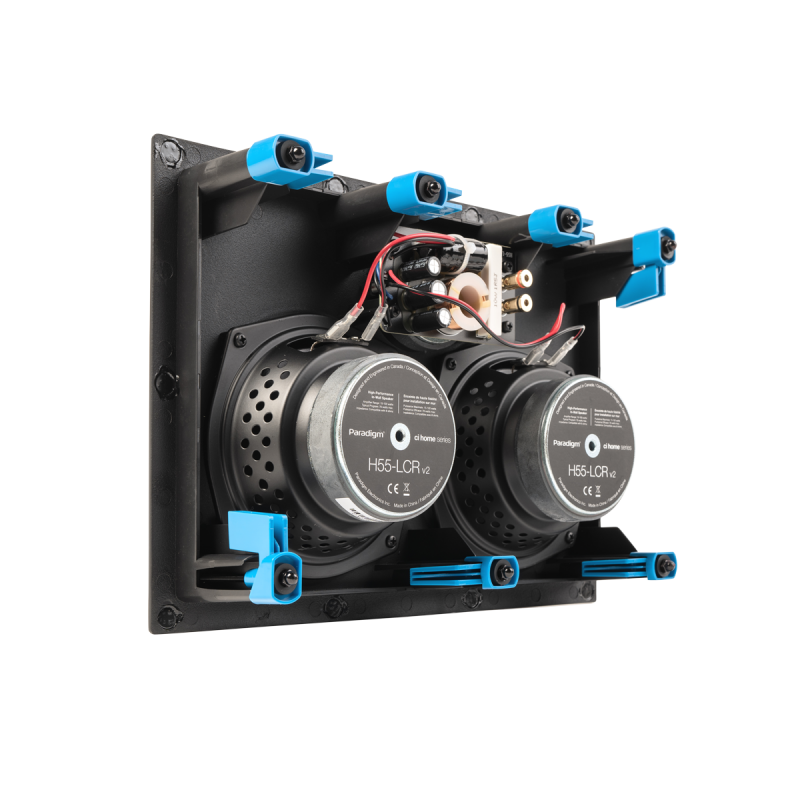

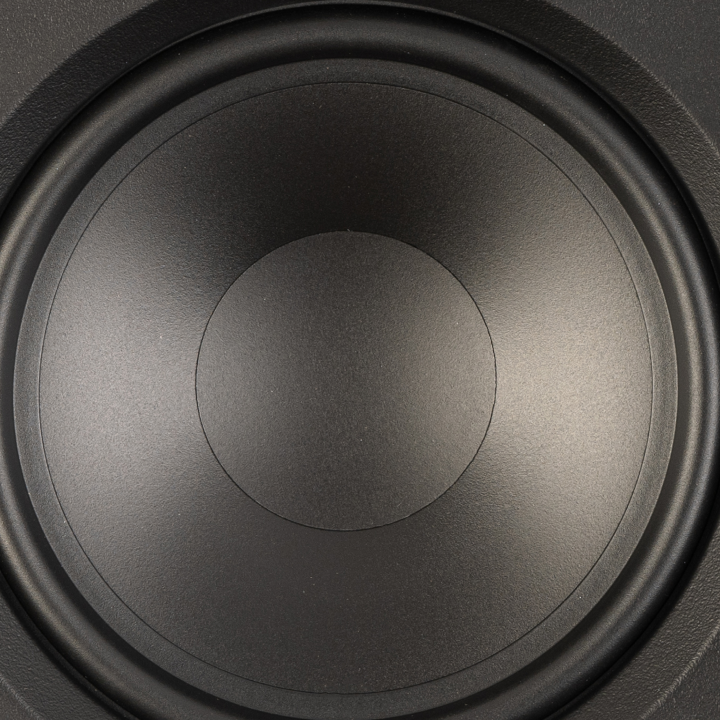

Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

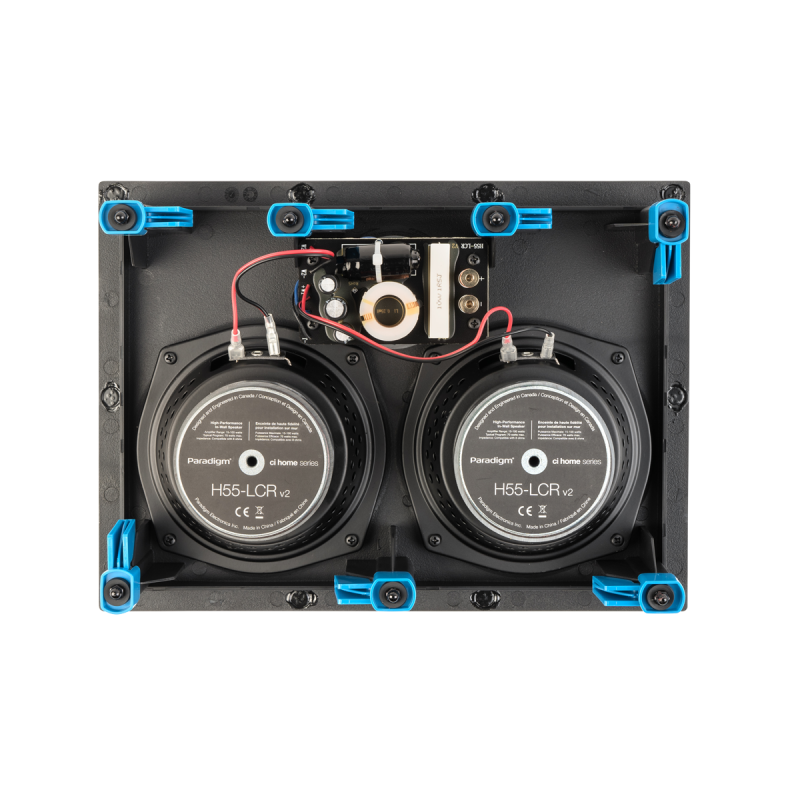

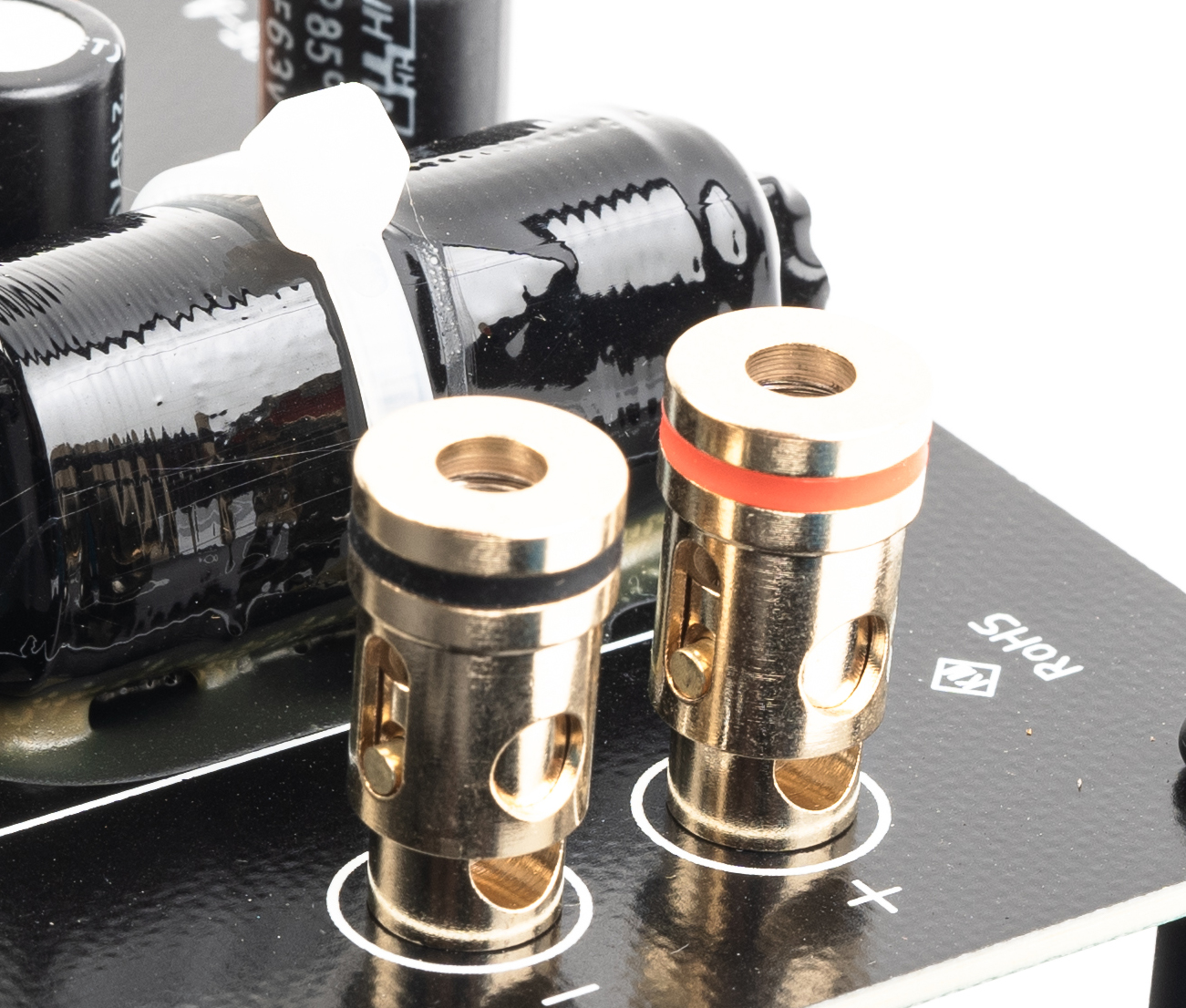

Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

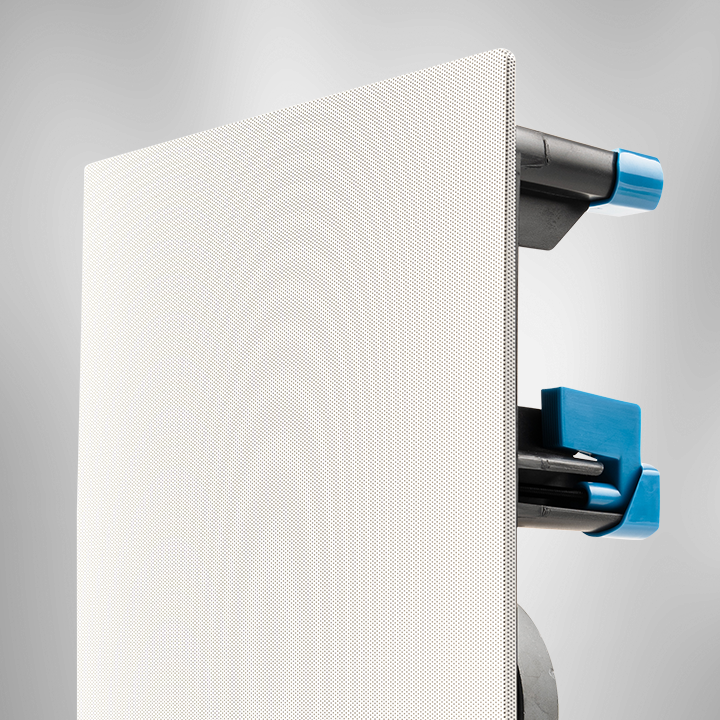

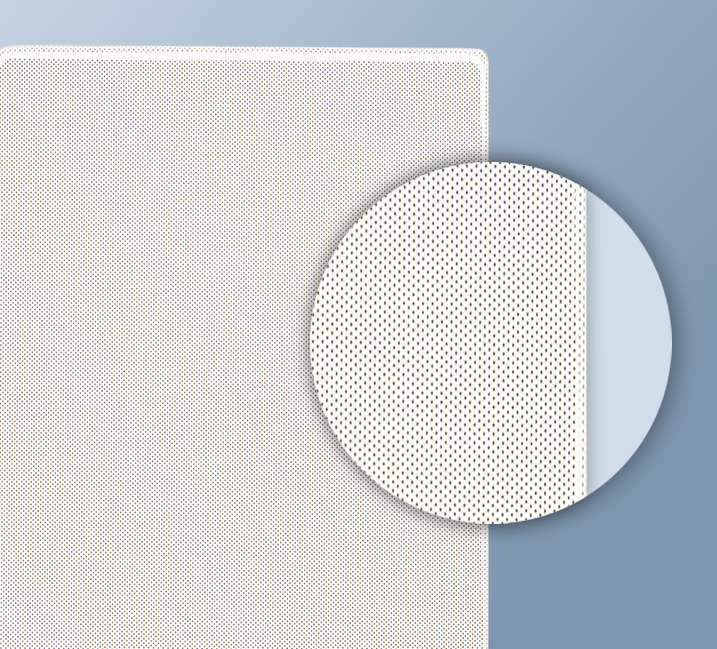

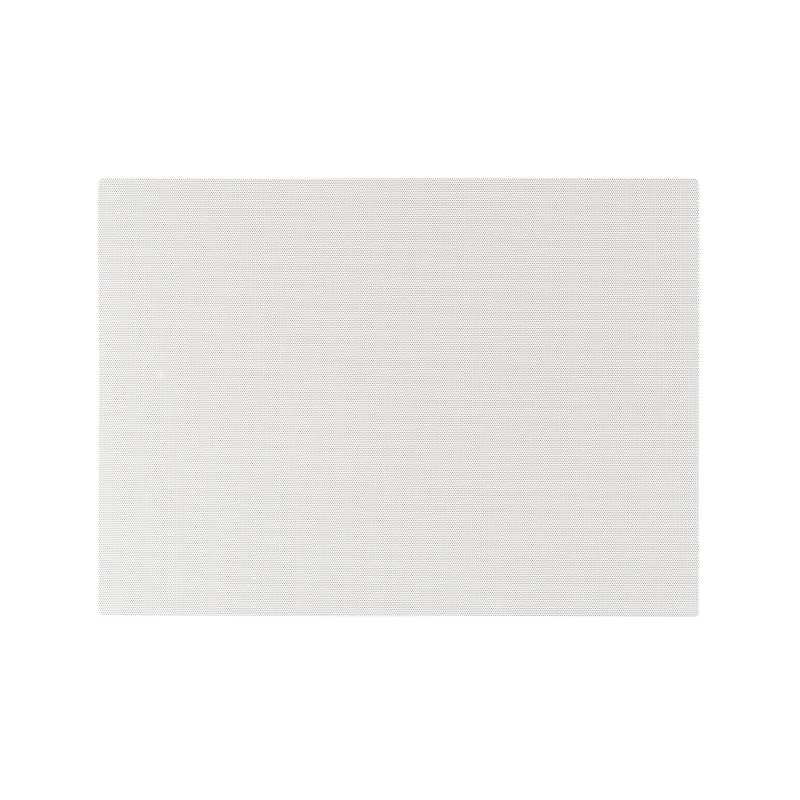

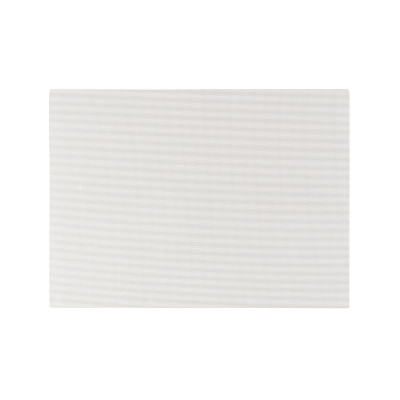

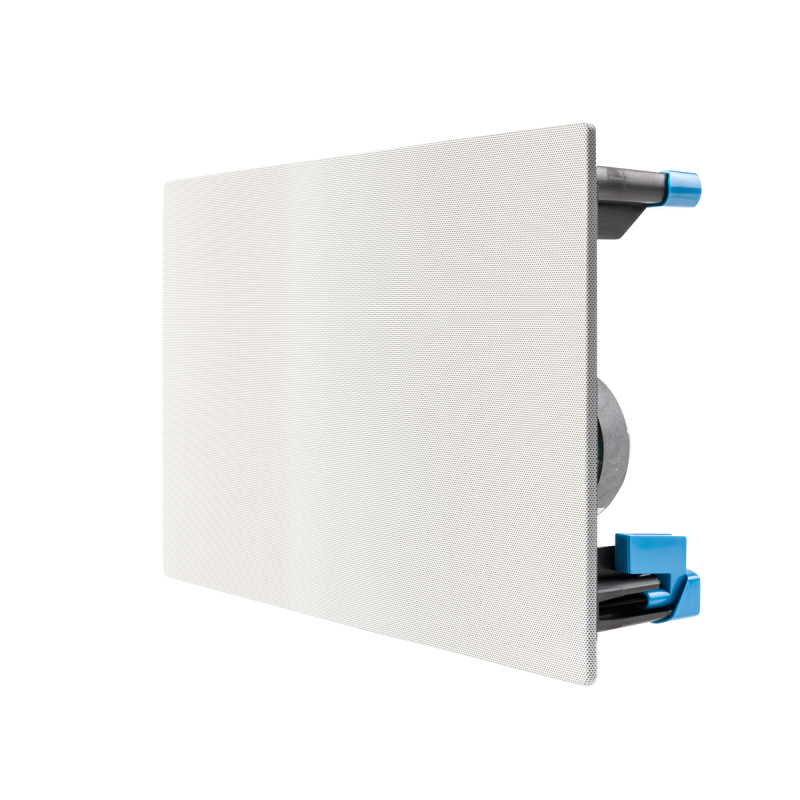

Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!
Specifications | |
---|---|

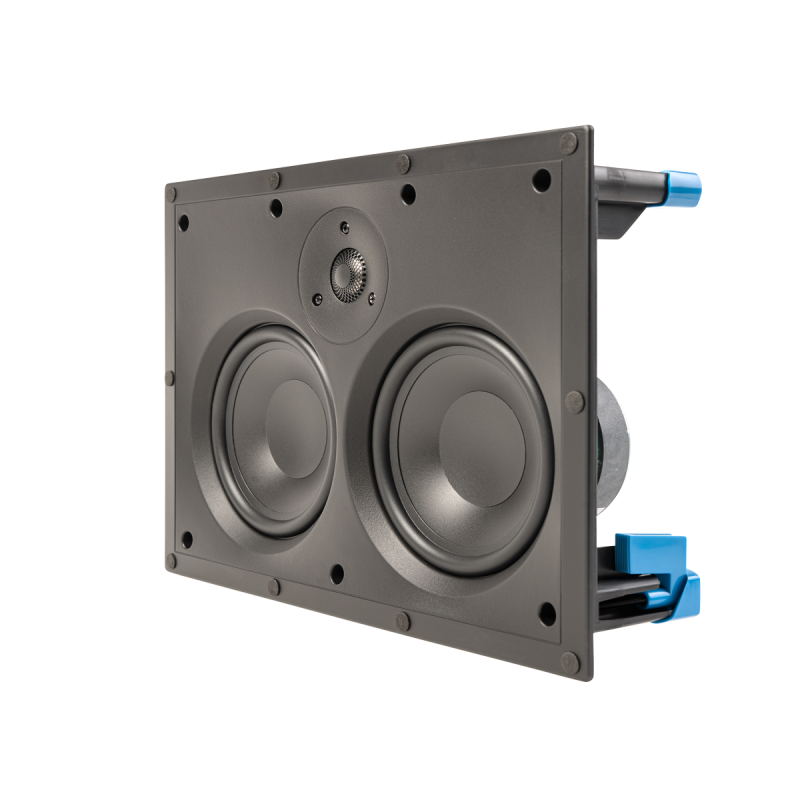

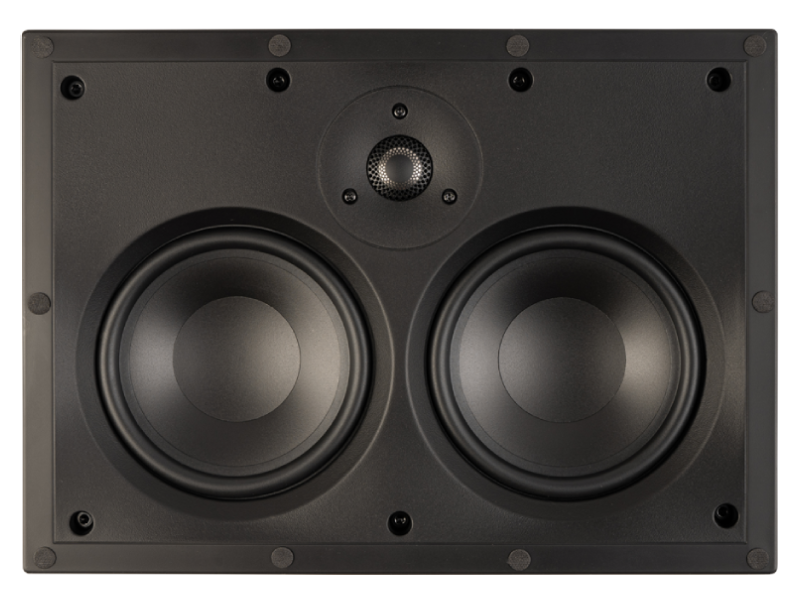

DESIGN | 3-driver, 2-way in-wall left/center/right, ABS chassis & mounting clamps |
CROSSOVER | 2nd-order electro- acoustic at 2.5 kHz |
FREQUENCY RESPONSE ON-AXIS | ±2 dB from 75 Hz - 20 kHz |
HIGH FREQUENCY DRIVER | 3/4" (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens |
MID/BASS FREQUENCY DRIVER | Two 5.5" (13.9cm) Mineral-filled Polypropylene Cone |
LOW FREQUENCY EXTENSION | 60 Hz |
SENSITIVITY ROOM / ANECHOIC | 89 dB / 85 dB |
FREQUENCY RESPONSE 30° OFF-AXIS | ±2 dB from 75 Hz - 15 kHz |
SUITABLE AMPLIFIER POWER RANGE | 15-100 W |
MAXIMUM INPUT POWER | 70 W |
IMPEDANCE | Compatible with 8 ohms |
WEIGHT | 5.9 lbs (2.7 kg) |
FINISHES | White, paintable grille, black speaker |
ACCESSORIES (INCLUDED) | PB-8X12N |
CUT-OUT DIMENSIONS | 8-1/4" x 11-5/8" (20.9cm x 29.5cm) |
MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) | 2-3/4" (7cm) |
DIMENSIONS HXWXD (INCLUDES GRILLE). | 12-5/8" x 9-1/4" x 3-1/2" (32.1cm x 23.5cm x 8.8cm) |
