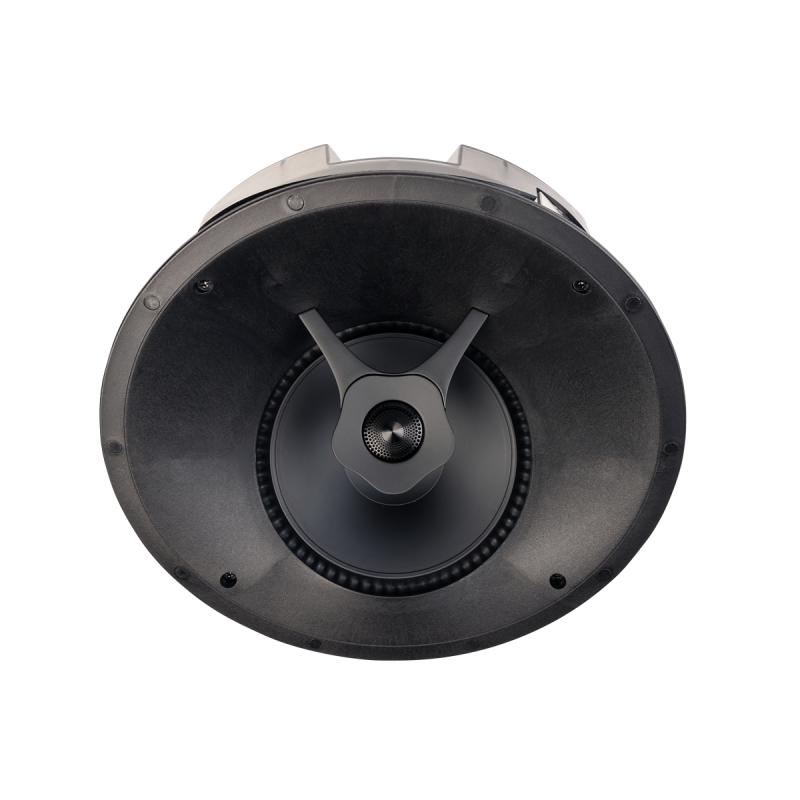

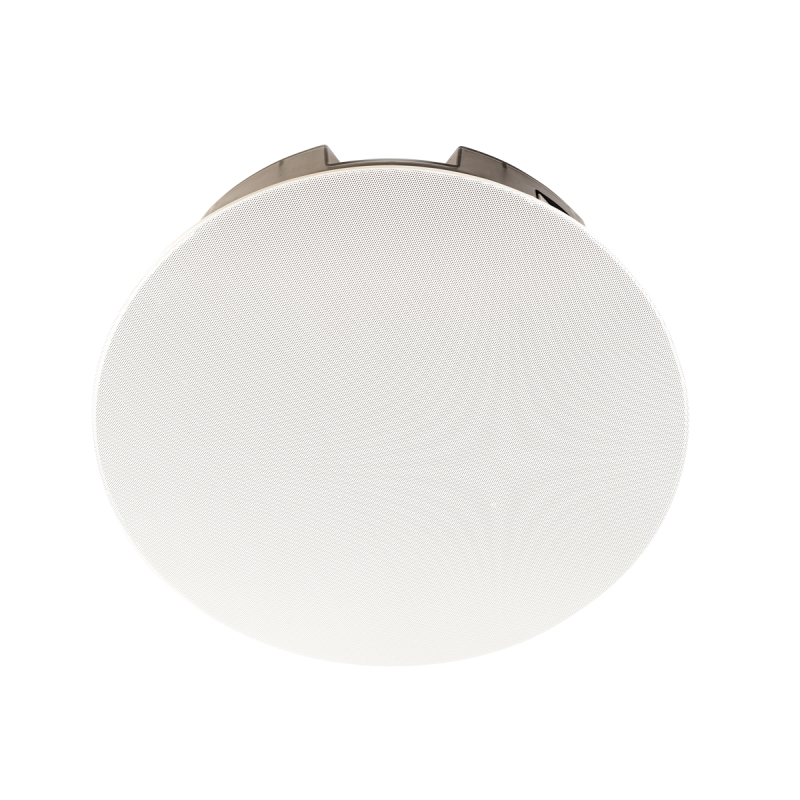

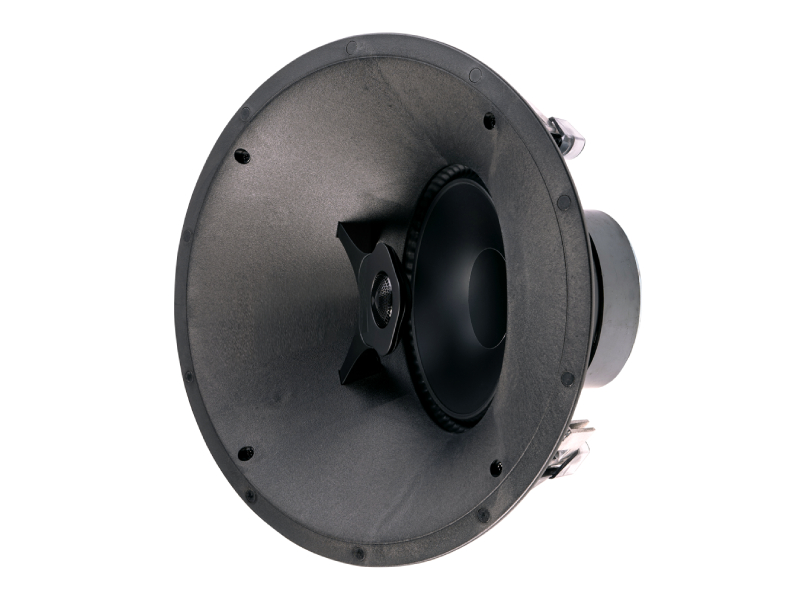

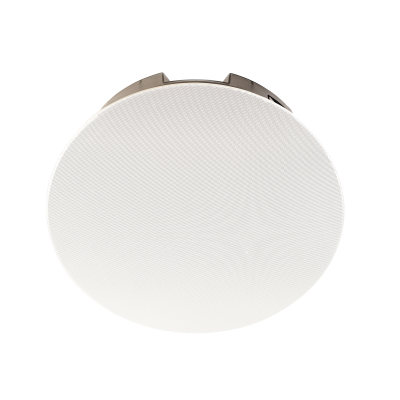

Paradigm 2 Driver 2 Way In Ceiling Speaker (Each) - CI Elite E80-A v2

$799.99 CAD / Each


Availability
Call for availability

Literature

The Custom Installer's Performance-Oriented Solution. The CI Elite series is Made in Canada and has all the technology advantages of our CI PRO Series, but we didn't stop there. It's packed full of features that make a difference, and it doesn't get much sweeter than this when looking for the ultimate sound performance.

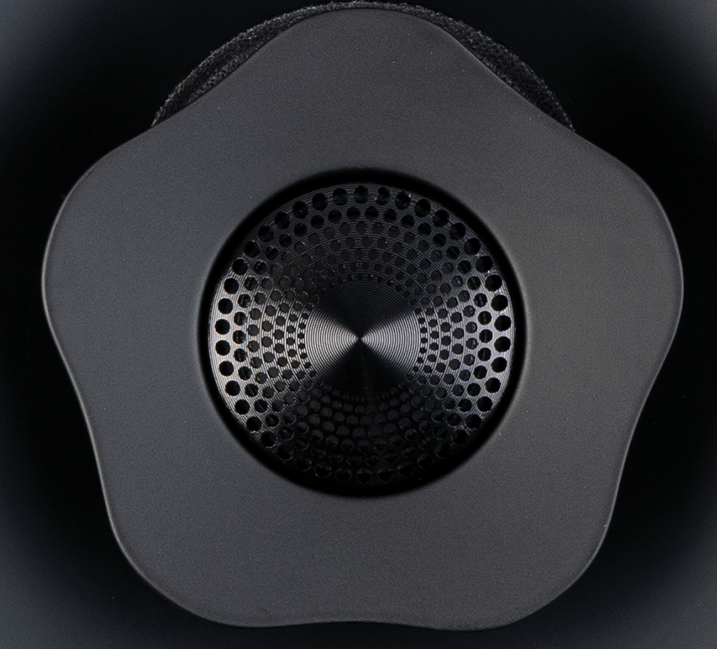

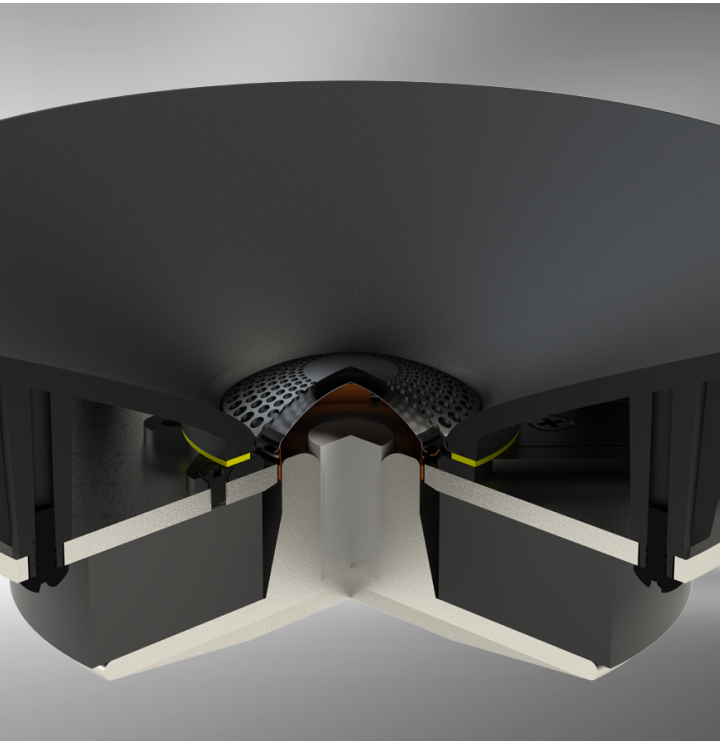

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn't just sound good "on paper" but truly sounds incredible in the real world.

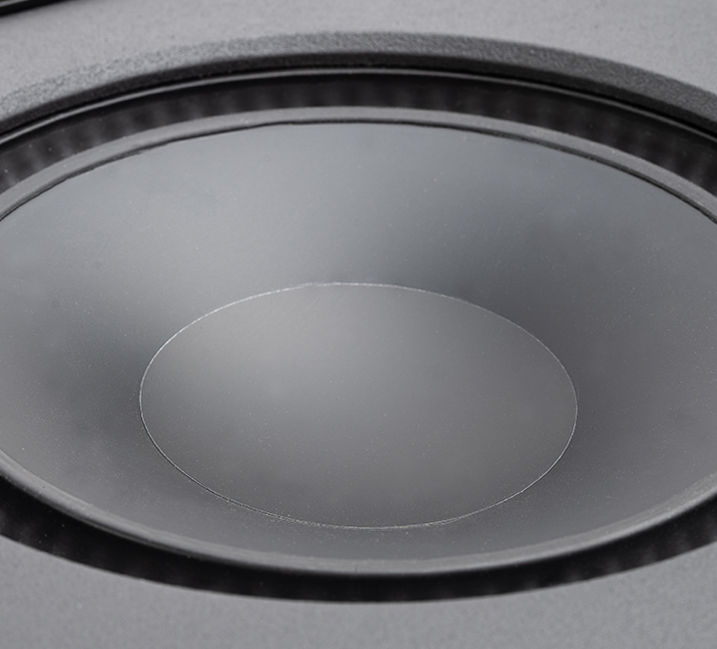

Aluminum Magnesium (AL-MAG™) Cones

Similar to the goals we had in mind when developing the AL-MAC™ tweeter, AL-MAG™ was conceived to bring the same elevated level of performance to the area where our ears are the most sensitive. In addition, AL-MAG™ combines a high stiffness-to-mass ratio with superior internal damping for greater accuracy.

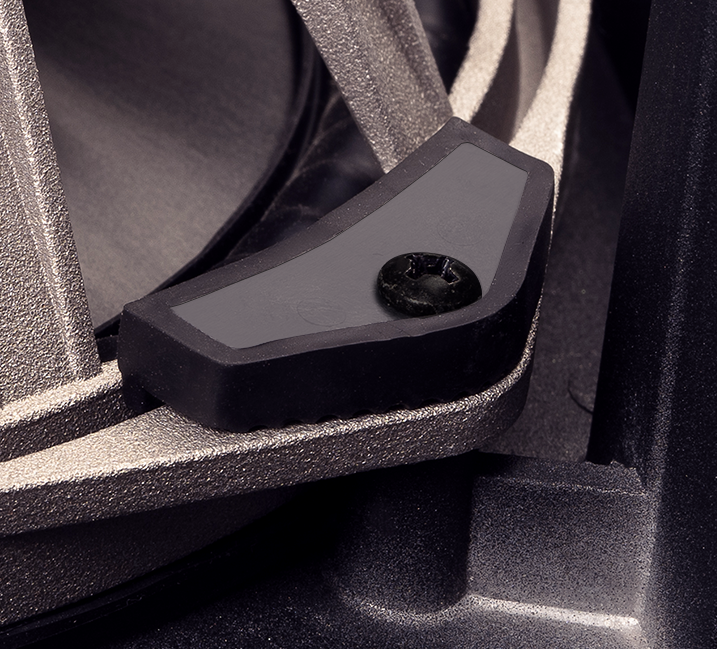

Advanced Shock-Mount™ System

mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

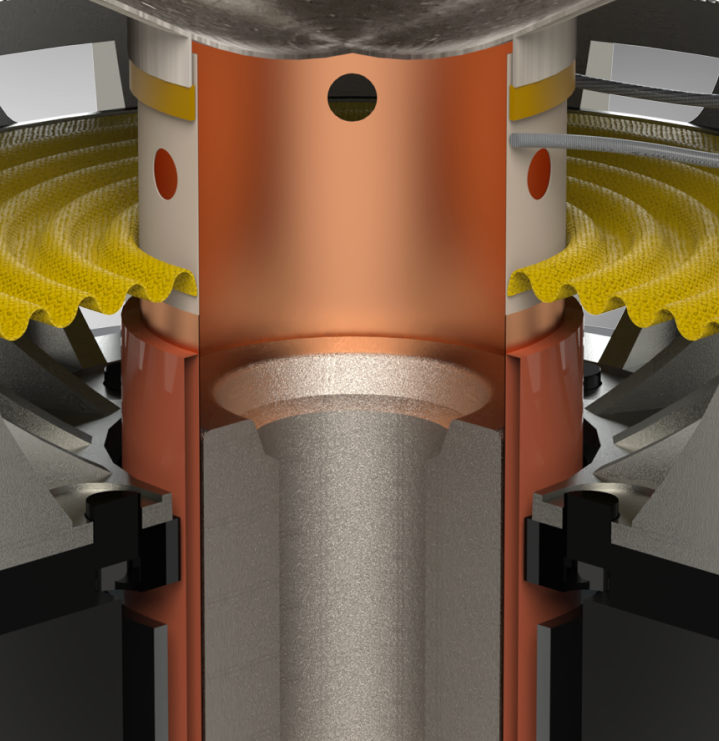

Oversized, 1.5" High-Power Handling Voice Coil

motor structure dramatically increases maximum output level and reduces power compression.

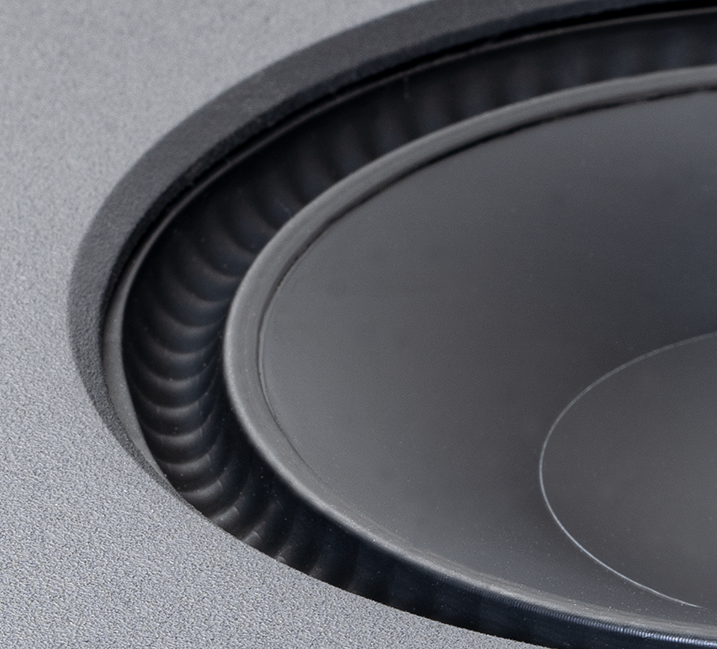

Patented Active Ridge Technology (ART™) surrounds

made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. US patents: D654,479S and 8,340,340B2.

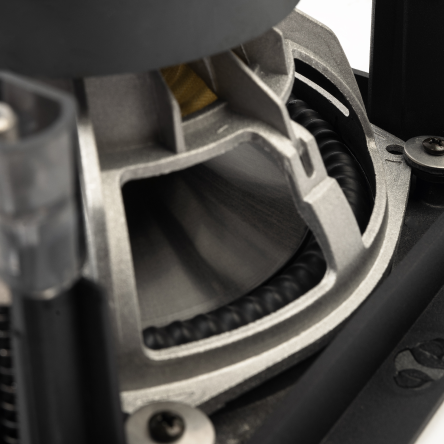

FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.



Integrated Acoustic Back-box Enclosure safeguards internal parts from debris while preventing added sound 'spillage' to adjacent rooms. It also ensures consistent and reliable performance from application to application. (CI Elite LCR models only)



Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)

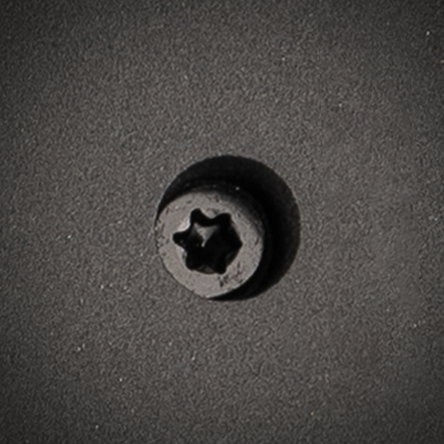

Pocketed screw holes help to hold the drill steady, making installation a snap.

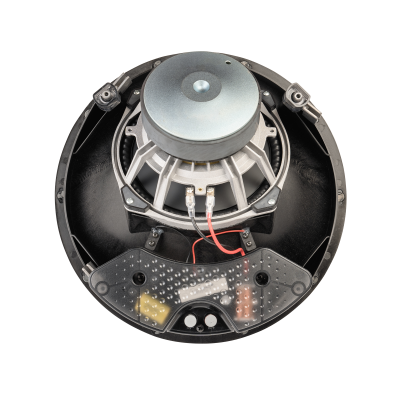

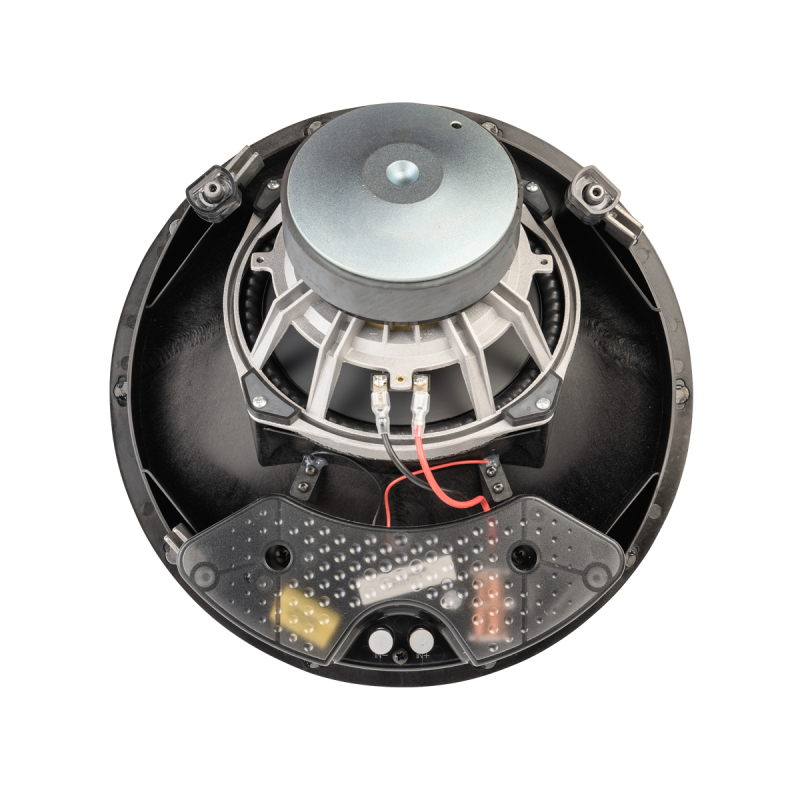

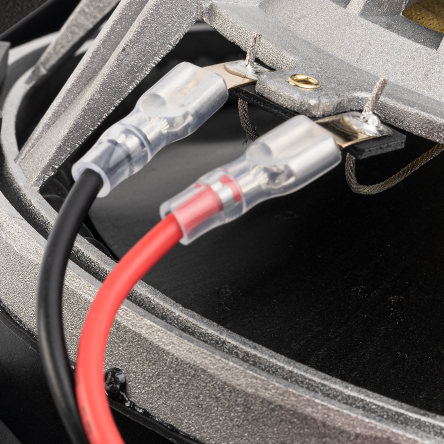

Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

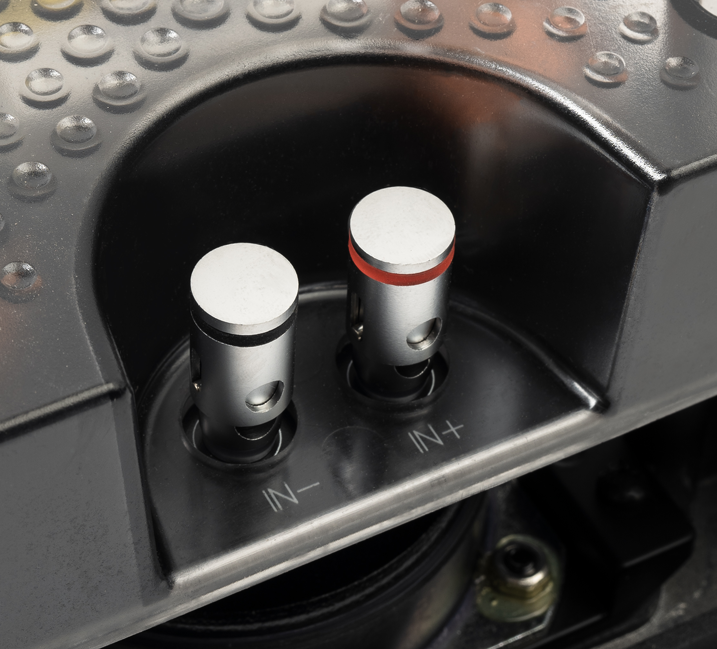

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

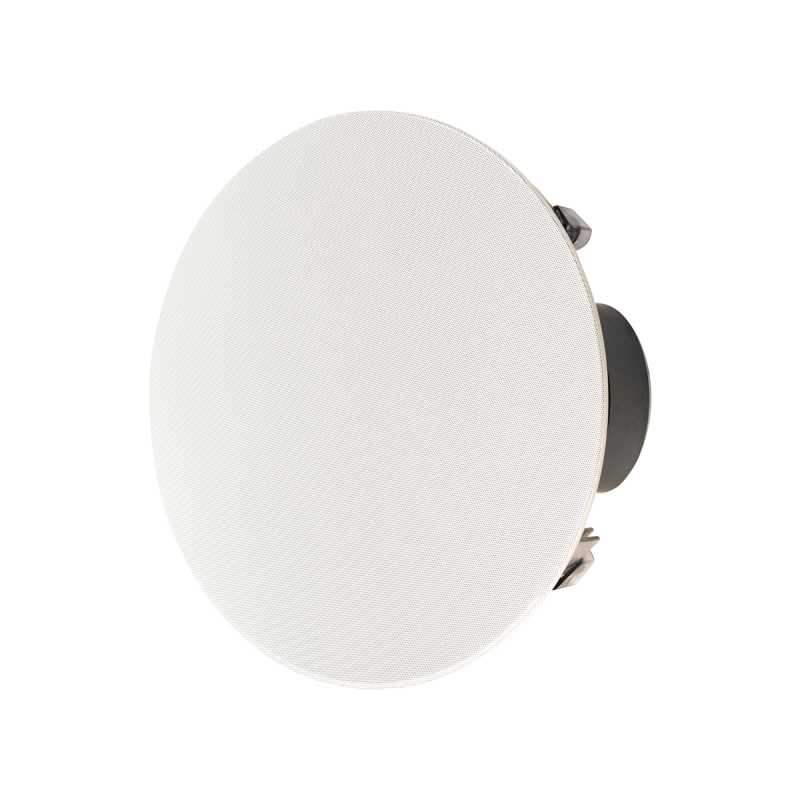

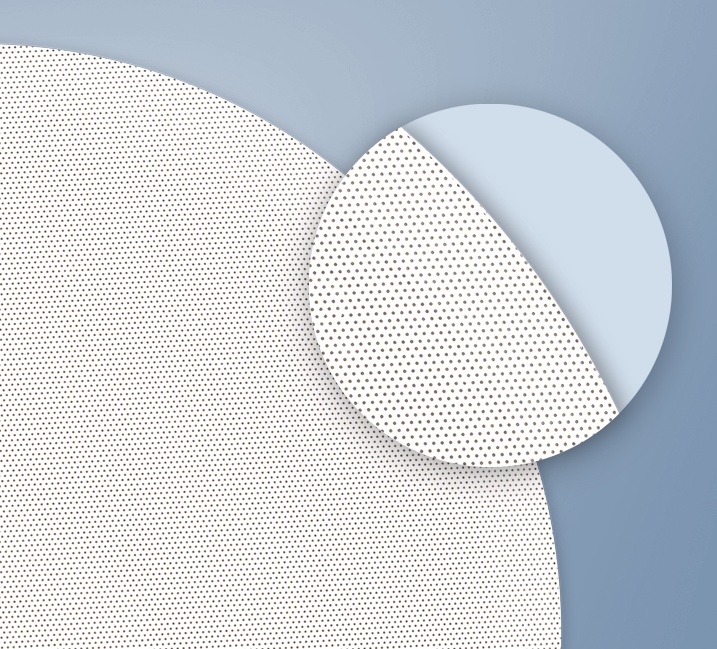

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.

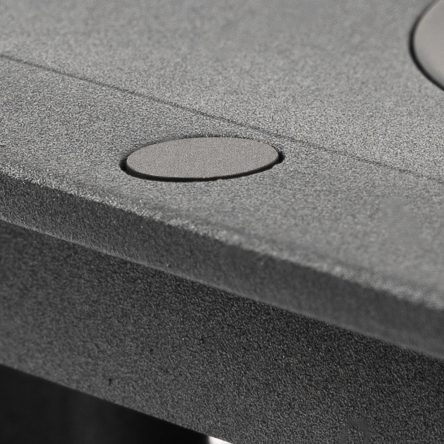

Magnetically attached grilles: neodymium magnets hold grilles firmly in place.


Specifications
DESIGN2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfeild System, Advanced SHOCK-MOUNT™ System, Ultra-Rigid CARBON-X™ Baffle
CROSSOVER3rd-order electro- acoustic at 2.0 kHz
FREQUENCY RESPONSE ON-AXIS±3 dB from 60 Hz - 22 kHz
HIGH FREQUENCY DRIVER1" (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER8" (20.3cm) Aluminum Magnesium (AL-MAG™) Coneswith overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5" high-temp voicecoil, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
LOW FREQUENCY EXTENSION39 Hz
SENSITIVITY ROOM / ANECHOIC94 dB / 90 dB
FREQUENCY RESPONSE 30° OFF-AXIS±3 dB from 60 Hz - 18 kHz
SUITABLE AMPLIFIER POWER RANGE15-160 W
MAXIMUM INPUT POWER100 W
IMPEDANCECompatible with 8 ohms
WEIGHT9.0 lbs (4.1kg)
FINISHESWhite, paintable grille, black speaker
CUT-OUT DIMENSIONS11-7/16" (29.1cm) dia.
MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)5-3/4" (14.6cm)
DIMENSIONS HXWXD (INCLUDES GRILLE).12-5/8" x 6-3/8" (32.0cm x 15.5cm)
