Fusion Marine Zone Amplifier With Multi Zone Technology - MS-AM702
Literature
Add amplification to any zone throughout your vessel.

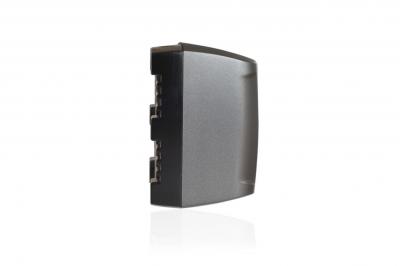

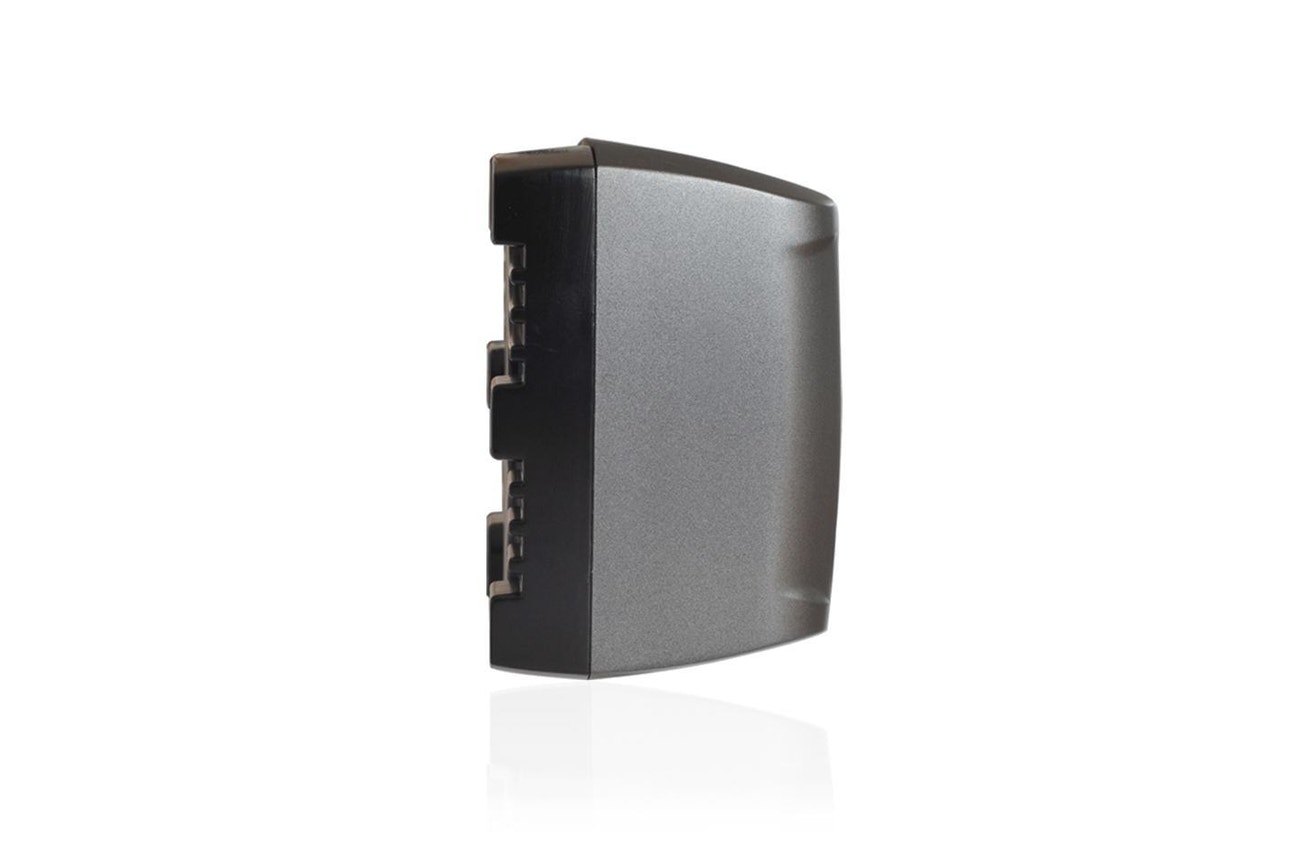

The MS-AM702 Marine Zone Amplifier is designed to support Multi-Zone Technology.
This 2 channel, 140 watt zone amplifier is small, allowing for discreet installation. When combined with a marine stereo unit, it provides a platform for a true multi-zone audio system.
Rated True-Marine, the MS-AM702 comes with an industry-leading 3-year warranty.
Features:
- Small size for discreet installation (128mm x 78mm x 51mm)
- 140 watt (70W x 2) peak power output with two channels.
- Class-D amplifier technology – for a high output with low battery drain
- 2 Ohm stable stereo
- Conformal coated PCB – extends product life and performance
- Water resistant design
- Variable high pass filter
- Selectable high pass/full range setting
- Audio-detect function available – the amplifier will turn on when audio is detected and switches to low power mode/sleep when audio is not present.
- Rated True-Marine with 3-year warranty
| Product Specifications | |
|---|---|
| Amplifier Class | Class-D |
| Peak Power | 140 Watts |
| Rated Power (4 Ohms) | 20 Watts RMS x 2 @ 14.4V - 4 Ohms 10% THD |
| Rated Power (2 Ohms) | 30 Watts RMS x 2 @ 2 Ohms 10% THD |
| Operating Voltage | 10 -16 Volts DC |
| Warranty | 3 Year Warranty |
| Mounting Dimensions | |
| Length | 128mm (5-1/16") |
| Depth | 78mm (3-1/16") |
| Height | 51mm (2") |
