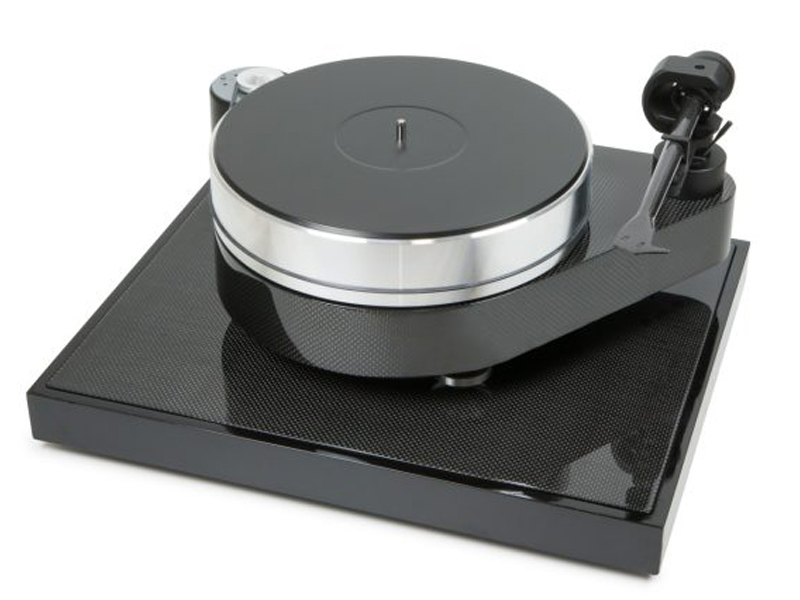

Project Audio High end turntable with 9“ Evo tonearm RPM 10 Carbon - PJ50435315

$6,199.99 CAD


Availability
Call for availability

Literature

RPM 10 Carbon: Beautiful and clever design with true high-end sound quality

Due to extensive research and development, we now lift our classic RPM design to an even higher level. The RPM 10 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and a carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolute stable turntable speed with extra low rumble. The extra heavy outboard motor unit is equipped with a precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least the non-compromise 9“ Evo tonearm with conical carbon-fibre armtube and inverted bearing design ensures perfect tracking, even with demanding cartridges. Highly flexible top-grade copper internal wiring. Delivered with topgrade 5P phono cable „Connect it CC“ with RCA plugs (XLR as an option).

Features

  • Advanced sandwich construction of plinth with combination of MDF, carbon fibre and steel pellets
  • Plinth manufactured with thermo treatment
  • Mass loaded subchassis design with magnetic feet
  • Inverted main bearing with ceramic ball/plate
  • 7,2kg acoustically inert aluminium platter with TPE damping and vinyl mat on the top
  • DC power supply with AC motor
  • Precise DC driven AC generator (Speed Box) built-in
  • Electronic speed control with 33/45 rpm switching
  • Outboard motor construction with massive steel base
  • Pre-mounted 9“ tonearm 9 cc Evolution
  • 5P Connect it Phono CC cable with RCA plugs (XLR available as an option)
Specifications
Included accessories15 volts DC / 1600 mA power supply
Power connection110/240 Volt - 50 or 60 Hz
Speed drift33: +/- 0.11% I 45: +/- 0.10%
Mains bearingInverted stainless steel with ceramic ball/plate
Drive principleBelt drive
Platter14.4 kg aluminium (300 mm diameter)
Speed33, 45 (electronic speed change)
Wow & flutter33: +/- 0.01% I 45: +/- 0.01%
Tracking force10 - 35 mN
Overhang16 mm
Effective arm mass8.5 g
Effective arm length254 mm
Tonearm10” EVO carbon
Weight (Base)14.5 kg net
Dimensions480 x 210 x 330 mm (WxHxD)
Power consumption15 Watts max / < 0.3 watt standby
Weight22. kg net
Signal to noise73dB
