Panasonic Additional Outdoor Camera - KXHNC715

$229.99 CAD


Availability
Call for availability

Literature

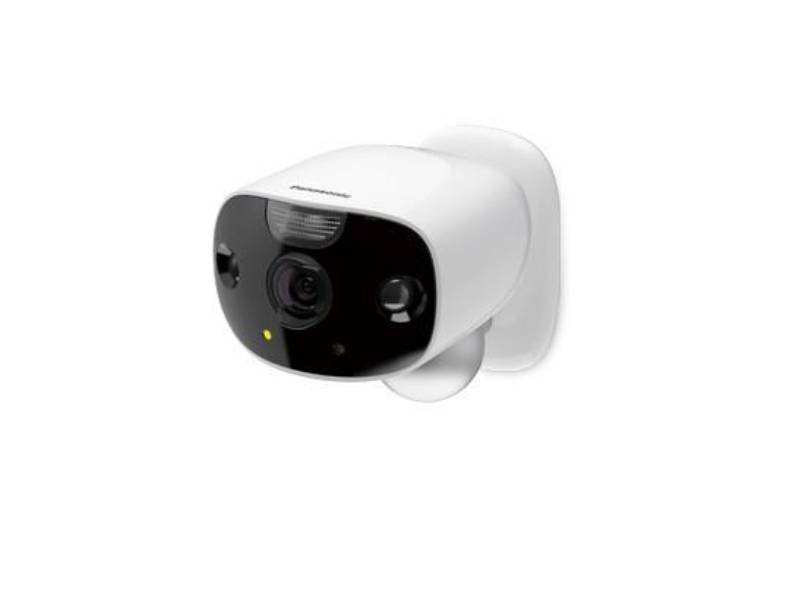

Additional Outdoor Camera

Additional wireless outdoor HD camera for HomeHawk system

Colour
ColourWhite
Wireless System
Wireless SystemIEEE 802.11 b/ g*1
Frequency Range
Frequency Range2.412 GHz – 2.462 GHz*1
Encryption
EncryptionWPA/ WPA2-PSK (AES)*1
Number of Camera Registration per Access Point
Number of Camera Registration per Access PointUp to 16 cameras
Number of Camera Registration per Smartphone Application
Number of Camera Registration per Smartphone ApplicationUp to 64 cameras
Simultaneous Access
Simultaneous Access-
Transmitting Range
IndoorsApprox. 30 m (98 feet 2 inches)*2
OutdoorsApprox. 100 m (328 feet 1 inch)*2
Camera Angle
HorizontalApprox. 150°
VerticalApprox. 85°
DiagonalApprox. 172°
Pan
Pan-
Tilt (facing forward - facing down)
Tilt (facing forward - facing down)-
Zoom
Zoom-
Video Compression
Video CompressionH.264
Image Sensor
Image Sensor1.0 megapixel CMOS
Camera Resolution
Camera Resolution1280 x 720 pixels (HD), 640 x 352 pixels, 320 x 176 pixels
Max Frame Rate
Max Frame RateUp to 30 fps
Focal length
Focal lengthFixed (0.2 m (0.7 feet) - infinity)
Wide Dynamic Range
Wide Dynamic Range-
High Dynamic Range
High Dynamic Range-
IR Cut
IR CutYes
Manual Recoding
Manual RecodingYes
Automatic Recording
Automatic RecordingYes*3
Pre-Recording
Pre-RecordingYes*4
Recording Time
Recording Time2 GB card: 4 hours 4 GB card: 9 hours 8 GB card: 18 hours 16 GB card: 36 hours 32 GB card: 72 hours 64 GB card: 145 hours 128 GB card: 291 hours *5, *6, *7, *8
Time Stamp on Video Image
Time Stamp on Video ImageYes
Monochrome Night Vision (Range)
Monochrome Night Vision (Range)Yes (Approx. 5 m (16 feet 5 inches))
Colour Night Vision (Range)
Colour Night Vision (Range)Yes (Approx. 2 m (6 feet 7 inches))
Sensor
SensorPyroelectric infrared sensor (PIR sensor) Visual sensor
PIR Sensor Detection Range
HorizontalApprox. 170°
VerticalApprox. 19.1°
Detection rangeApprox. 6 m (19 feet 8 inches)
Visual sensor Detection Range
HorizontalApprox. 150°
VerticalApprox. 85°
Selectable Area Detection
Selectable Area DetectionYes
Non Detection Upon Going Out
Non Detection Upon Going OutYes
Automatic Warning
Automatic WarningYes (Flashing Light/ Beep Sound)
Works with Amazon Alexa / Google Assistant
Works with Amazon Alexa / Google AssistantYes
Dustproof/ Waterproof Rating
Dustproof/ Waterproof RatingIP65 *15
Noise Reduction
Noise Reduction-
SPEAKER
SpeakerYes
Speaker Volume
Speaker Volume6-step + OFF
Microphone
MicrophoneYes
Privacy shutter
Privacy shutter-
Status Indication
Status IndicationLED (Amber/ Green/ Red)
Charge Indicator
Charge IndicatorLED (Red)
Setup Button
Setup ButtonOne Push Pairing button
microSD Card Slot
microSD Card Slot-
Wall Mountable
Wall MountableYes
Adjustable Mounting Angles
HorizontalApprox. ±90°*9
VerticalFacing forward - Facing down: Approx. 35° ~ -90° *9
Adjustable Standing Angles
HorizontalApprox. ±90° *10
VerticalFacing forward - Facing down: Approx. 45° ~ -40° *10
POWER SOURCE
Power Source5.0 V, 1.0 A *11
Operating Conditions
Operating Conditions-20 °C ~ 50 °C (-4 °F ~ 122 °F) up to 90% relative air humidity (non-condensing)
Battery Performance
Operating TimeUp to 7 hours
Standby TimeUp to 3 months *16, *17
Charge TimeAbout 7 hours
Power Consumption
Standby0.003 W
During Operation1.8 W*12 1.5 W*13
Dimensions/ Weight
Dimensions (H x W x D)Approx. 98 mm x 71 mm x 94 mm (3 7/8 inches x 2 13/16 inches x 3 11/16 inches)*14
Length of Power Cord (USB Cable)Approx. 1 m (1 feet 3 5/16 inches)
WeightApprox. 490 g (1.08 lb)*14
Note
Note*1 Only between Camera Unit and Access Point Unit *2 Line-of-sight distance between Camera Unit and Access Point Unit. *3 Record images automatically when a sensor is triggered. *4 Collaborating with other camera units. *5 Recorded files will be stored via the microSD/ microSDHC/ microSDXC card in the Access Point. *6 All times are approximate. *7 Maximum continuous recording time is 2 minutes. *8 Recording time is the theoretical value in HD image quality and 25 fps. *9 Adjustable when mounting. *10 Adjustable when standing. *11 Only when charging. *12 When the LED lights are not lit. *13 When the LED lights are lit. *14 Including the wall mounting adaptor. *15 Water resistance is only assured if the camera is installed correctly and appropriate water protection measures are taken. *16 When used 5 minutes a day. *17 Battery performance changes depending on the surrounding temperature, frequency of use and the actual usage environment.
